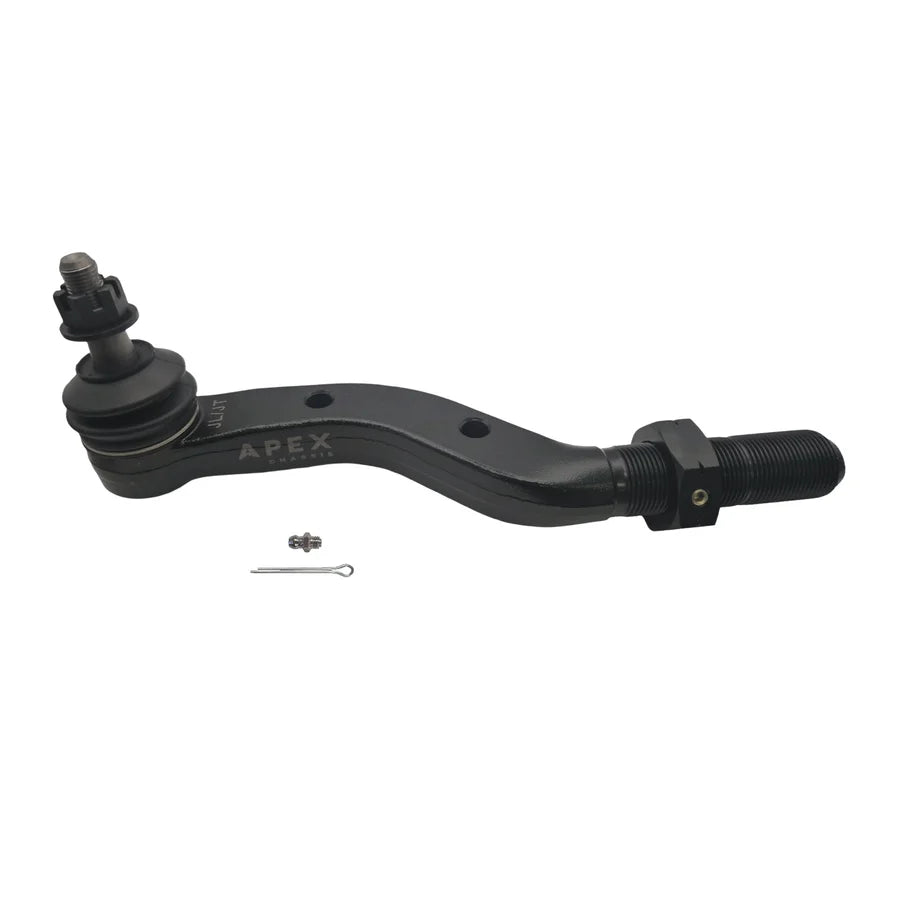

APEX TR182K - TIE ROD END - PASS SIDE - (at LH THREAD)

Name: APEX TR182K - TIE ROD END - PASS SIDE - (at LH THREAD)
Brand: APEX CHASSIS
SKU: TR182K
Price: 550.0 AED
Availability: InStock

CODE: TR182K

550.00 In Stock Out of stock

Price Incl. 5% VAT: 577.50

Domestic (UAE) 2-3 Days Delivery

International (Worldwide) 5-10 Days Delivery

1 Year Warranty

Secure Payments

Preparing Sep 14

UAE Delivery Sep 16 – Sep 17

Worldwide Sep 21 – Sep 24

Categories: ALL PRODUCTS, APEX CHASSIS, SUSPENSION PARTS

SPLIT IN 4 INTEREST-FREE

%5 VAT EXCLUSIVE

WORLDWIDE DHL SHIPPING

Description
Shipping and Refund
Reviews

What It Fits:

Jeep Wrangler JL (2018-2026); Jeep Gladiator JT (2019-2026)

This is the pitman arm side drag link end on our 2.5Ton JL/JT steering kits.

NOTE: This rod end is not compatible with OE steering systems.

**This is new our ProLock keyway tie rod ends you'll need:

KW222 - 1.25"-41mm Apex Pro Lock Key Washer 1.75" Steel
KW223 - 1.25"-46mm Apex Pro Lock Key Washer 2" Aluminum

The Special Sauce:

HOUSING

SAE 1045 Solid Steel Forged Housing: This is unequivocally the best carbon alloy steel for this application.
CNC Machined Housing: Make our parts and bearings dimensionally perfect, eliminating any die wear issues.

BALL STUDS

SAE 4140 Hot Forged Chromoly Ball Studs: For the strongest possible metallurgy.
Induction Heat Treated Ball Studs: Provides a very precise heat treatment to the exact depth and location we want it.
Rolled Threads: Made by pressing the shape of the threads into the ball stud instead of cutting. This strengthens the threads instead of weakening them and allows for easy movement of hardware. This ain't no Ikea furniture!
Step Threads: Allows for very easy movement of hardware on install and superior holding when torqued (installer choice).

BEARING DESIGN

Rugged Metal to Metal Bearing

BOOTS

CR Rubber Boots: The most durable material for undercar applications. Resistant to deterioration from road level ozone, oil/gas/engine fluids and extreme heat or cold.
Accordion Boot: Ideal for high-articulation components, more flexibility means longer life.

HARDWARE

Grade 8 - Class 10.9 Hardware: Superior tensile strength.
Castle Nut: Industry standard where high vibration loads occur.

LUBRICATION

Pre Threaded Zerk Housing: If you have ever installed a MOOG Ball Joint without a pre-threaded zerk fitting you will understand what a simple but great feature this is. Another installer fav.
Greaseable: Because it should be.
Pre-Greased: Just in case you forget, we have you covered.
Gull Winged Grease Grooves: Allows for improved lubrication disbursement around the ball stud.
Zerk Fittings: Included for every application.

SPECIAL FEATURES

Our patent-pending ProLock Link Connect System™ is engineered to eliminate one of the most common steering system failures: unwanted tie rod rotation and loosening jam nuts.
At the core of the system is a machined keyway integrated directly into the threads of our rod ends. This pairs with a precision-cut keyway washer to create a mechanical lock between the tie rod or drag link ends and the adjusting sleeve—effectively preventing any unintended rotation of the connecting rod.
To further secure the assembly, we’ve developed a purpose-built jam nut with integrated set screws. This design positively locks everything in place, eliminating the long-standing issue of jam nuts loosening over time.
