GLADIATOR JT - FRONT & REAR - CTIS WHEEL VALVES - 8 BOLT HARD CORE PLUS PRO ROCK XD60/XD60

- Dynatrac exclusive patented ProRock® nodular-iron, high-pinion ProRock XD60® centersection with bearing bores to handle oversized pinion and carrier bearings for elite housing rigidity.

- More ground clearance than any other axle housing in its class.

- 3.75-inch diameter, variable wall thickness, lightweight tubing has the highest strength-to-weight ratio compared to any other light-truck axle on the market.

- Dynatrac exclusive Dual-Sump High Volume™ (DSHV) oiling system to ensure the outer pinion bearing is never without lubrication.

- Dynatrac-exclusive U.S.-made forged, double-heat-treated 1550 35-spline axle shaft assemblies. These are the best shafts in the industry and are capable of up to 50-degree turning angles.

- Our new 1550LT® knuckles are loaded with our best set of Dynatrac HD BallJoints™ yet. These are the last balljoints you’ll ever need, and are designed with larger stems and bodies for long life and high durability with big tires.

- Forged 4140, heat-treated, fixed spindles and serviceable wheel bearings support tires up to 44 inches.

- No other 4x4 front axle offers the ease of steering, low scrub radius, effective Ackermann angle, and high steering linkage positioning.

- Includes Dynatrac high capacity 13.25-inch brake upgrade with new dual-piston front calipers and vented rotors.

- Includes our latest integrated track bar and ram-assist steering mounting package.

- Includes new HD tie rod, integral steering arm, control arm bushings, CNC laser-cut HD suspension brackets, all professionally welded and installed.

- Includes DynaLoc™ locking hubs. DynaLoc hubs are over 3 times stronger than all other locking hubs on the market.

- Available in standard 68.5 inch width or 72.5 inch Wide Track.

- Comes with an ARB Air Locker, Eaton ELocker4, or Auburn Gears SELECT-A-LOC (formerly Ected Max) locker, and your choice of 4.88, 5.13, or 5.38 gears.

*NOTE: Comes with 35-spline shafts, hubs, and locker.

ProRock XD60® Standard-Cut Full-Float Rear Axle

- The strongest 60-series rear axle available – PERIOD!

- Exclusive XD60 rear housing with ProRock ground clearance

- Low-pinion, standard-cut gearing for ideal rear-axle application

- Increased pumpkin rigidity – better stability in gear mesh for higher durability under extreme loads

- Better strength, better gear stability

- High-capacity carrier-bearing saddle structure

- 7/16-inch cover bolts – cover now adds additional structure to the housing

- O-ring cover seal and hard contact mating surfaces

- Best ground clearance – No ribs underneath

- Industry-leading 4-inch axle tubes

- Best strength-to-weight ratio

- Available in standard 68.5 inch width or 72.5 inch Wide Track.

- Comes with an ARB Air Locker, Eaton ELocker4, Auburn Gears SELECT-A-LOC (formerly Ected Max) locker, and your choice of 4.88, 5.13, or 5.38 gears.

Introducing ActivAir: Revolutionizing Tire Pressure Management

Experience the next evolution in off-road industry with ACTIVAIR, now available on Dynatrac complete axle assemblies. Thanks to ACTIVAIR, you can adjust your tire pressure on the fly — all without leaving your seat.

Whether you're conquering rocks, sand, mud, or pavement, this innovative system ensures optimal traction and performance by the simple push of a button to reach your target PSI. Adopted in extreme environments and legendary races like the Dakar Rally and King of the Hammers, ACTIVAIR combines unmatched durability with cutting-edge TELEFLOW CTIS technology to keep you moving on the right pressure, no matter the conditions.

Using more than 30 years of defense and off-road expertise, ACTIVAIR’s breakthrough engineering ensures mobility and precision at your fingertips. By maintaining a constant tire pressure even in changing conditions, it delivers the perfect tire footprint for any adventurous driving experience - enhancing grip off-road, improving fuel efficiency on pavement, and reducing stress on your rig.

Designed for next-gen drivers who are seeking peak performance, ACTIVAIR transforms how you tackle the toughest terrains, letting you air up or down all your tires in just minutes. Ready to change the way you drive? With ACTIVAIR, the trail ahead is yours to conquer.

- Control Panel (for in-vehicle installation).

- Electronic & Pneumatic Control Unit.

- CTIS Wheel Valves.

- Wires & Hoses.

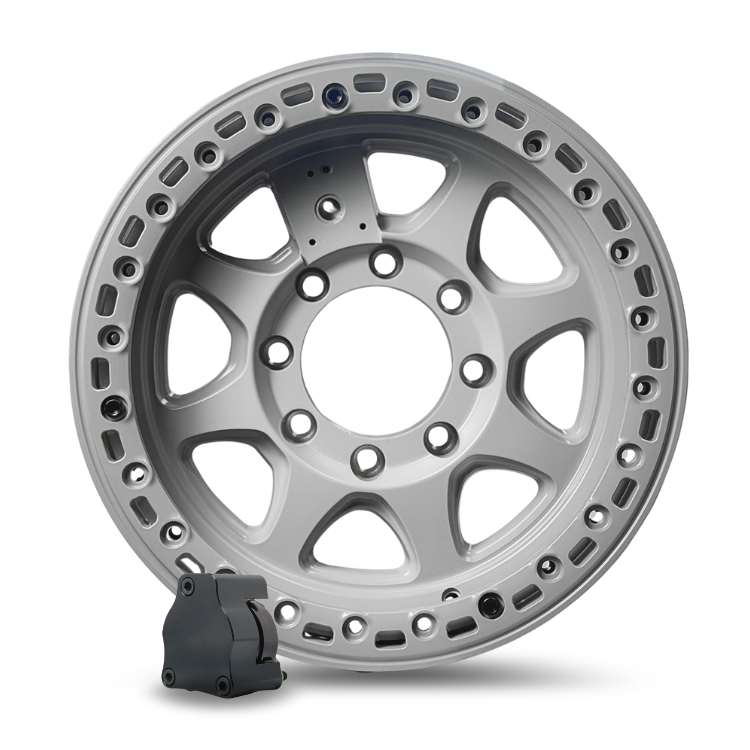

- 4 ACTIVAIR compatible Run Flat International Beadlock DOT wheels (5^th spare wheel available for purchase).
